If you’ve ever crawled under your house only to be hit with a wall of damp, earth-smelling air, you already know the sinking feeling. A musty smell coming from crawl space fix projects usually start with a simple realization: your floor joists are sweating, your fiberglass batts are dropping, and mold is ready to take over.
For years, homeowners relied on passive foundation vents, assuming outside air would dry things out. But ask any crawl space contractor or seasoned home inspector and they will set the record straight: are crawl space vents enough for humidity? Absolutely not. In humid summer months or rainy seasons, open vents drag soaked, heavy outdoor air directly under your subfloor.
If you’re seeing wet insulation in crawl space mold signs or fighting crawl space moisture problems in winter when frost coils up your equipment, you need a heavy-duty solution. Enter the AlorAir Sentinel HDi65S—a compact, commercial-grade unit designed specifically for tight under-house spaces and damp basements.
Here is a ground-level, unfiltered technical breakdown of the HDi65S, how it stacks up against big-name competitors, and whether it’s the right fit for your home.
Use Code: 3%OFFSentinel HDi65S
Controls dampness and helps prevent mold.
Why Crawl Spaces Rot (And How the HDi65S Fixes It)
Before looking at the hardware, let’s talk physics. Moisture moves from high pressure to low pressure, and warm air rises. The “stack effect” in your home pulls air from the crawl space right up into your living rooms, bedrooms, and kitchen. If that air is sitting at 80% relative humidity, your indoor air quality drops, your HVAC works twice as hard, and organic materials under your house begin to decay.
A standard retail dehumidifier from a big-box store won’t survive under a house. Those plastic residential units freeze up below 60°F, hold tiny 2-gallon buckets you have to empty manually, and lack the static pressure to circulate air in tight, obstructed belly spaces.
You need a commercial grade dehumidifier 120 PPD system that handles low ambient temperatures, drains automatically, and fits through standard access doors.
Use Code: 3%OFFSentinel HDi65S
Controls dampness and helps prevent mold.
Technical Specifications: AlorAir Sentinel HDi65S at a Glance
| Feature / Spec | Specification Details |
| Price | ~~$755.66 USD~~ $566.75 USD (Sale Price) |
| Water Removal (Saturation 90°F, 90%) | 120 Pints Per Day (PPD) |
| Water Removal (AHAM 80°F, 60%) | 55 Pints Per Day (PPD) |
| Coverage Area | Up to 1,300 sq. ft. |
| Airflow Capacity | 130 CFM (230 CMH) |
| Power Consumption | 115 V / 60 Hz, 4.1 Amps |
| COP (Efficiency Rating) | 2.4 L/kWh (Energy Star Certified) |
| Dimensions (L x W x H) | 19.2″ x 12.2″ x 13.3″ |
| Weight | 44 lbs |
| Compressor Type | Rotary Compressor |
| Refrigerant | R32 |
| Drainage System | Built-in Condensate Pump (19.6′ lift) or Gravity Drain |
| Operating Temperature Range | 33.8°F – 104°F |
| Noise Level | < 52 dBA |
| Filter Type | Side-Sliding MERV-1 Filter |
| Warranty | 6-Year Limited Warranty (2 Years Full) |
Key Features Under the Hood

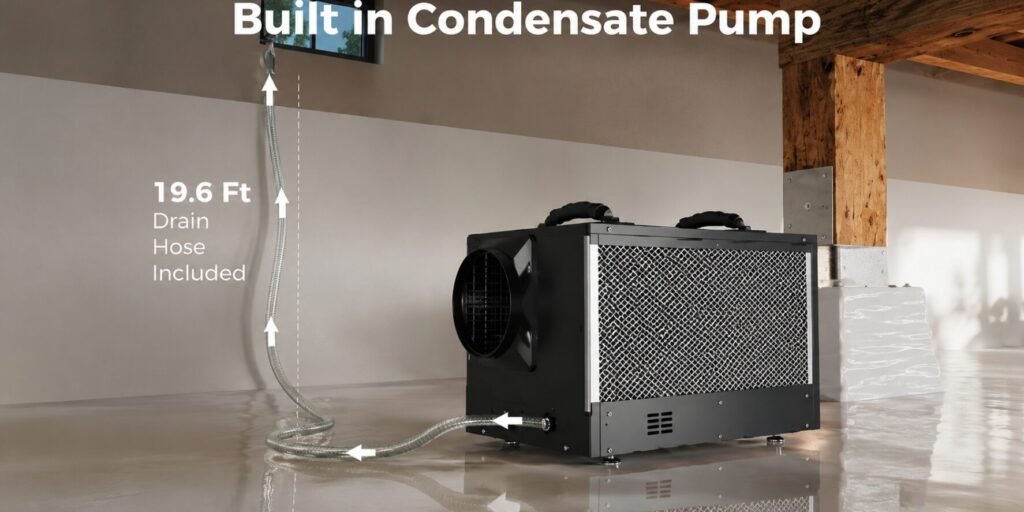

1. Built-in Condensate Pump with 19.6-Foot Lift
Gravity drainage is great if your home sits on a sloping grade with a clear discharge pipe running to daylight. But if your crawl space sits below grade, gravity won’t save you. The HDi65S houses an internal condensate pump capable of lifting collected water up to 19.6 feet high. You can run the included drain hose up into a main PVC drain line, out through a rim joist, or directly into a sump basin without buying a separate external pump box.

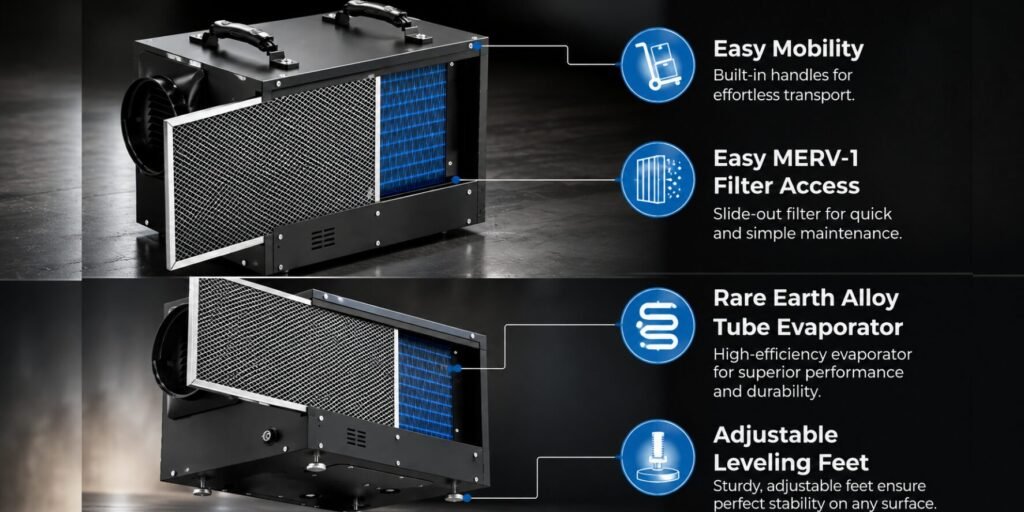

2. Rare Earth Alloy Tube Evaporator
Traditional copper coils in cheap dehumidification units corrode quickly when exposed to damp, soil-gassed environments. AlorAir uses a Rare Earth Alloy Tube Evaporator. This coating protects the coil against corrosion and thermal friction, preserving heat transfer efficiency over time and preventing micro-refrigerant leaks.

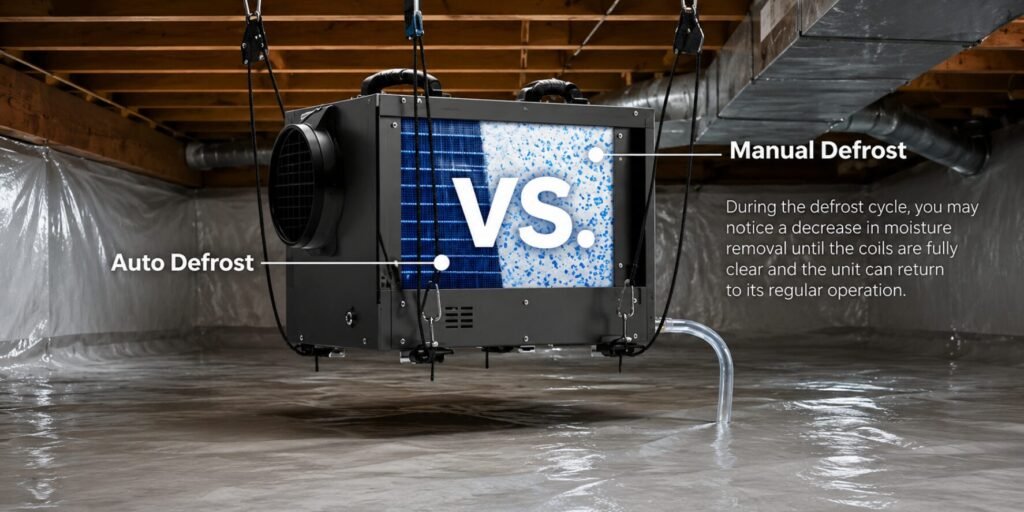

3. Smart Auto-Defrost & Low-Temp Operation
Crawl spaces get cold in late fall and early spring. Standard dehumidifiers turn into solid blocks of ice when air temperatures drop below 58°F. The Sentinel HDi65S features a hot gas defrost cycle that continuously monitors coil temperatures down to 33.8°F. When frost builds up, the bypass system temporarily stops the compressor while keeping the 130 CFM fan running to melt ice off the coils fast.

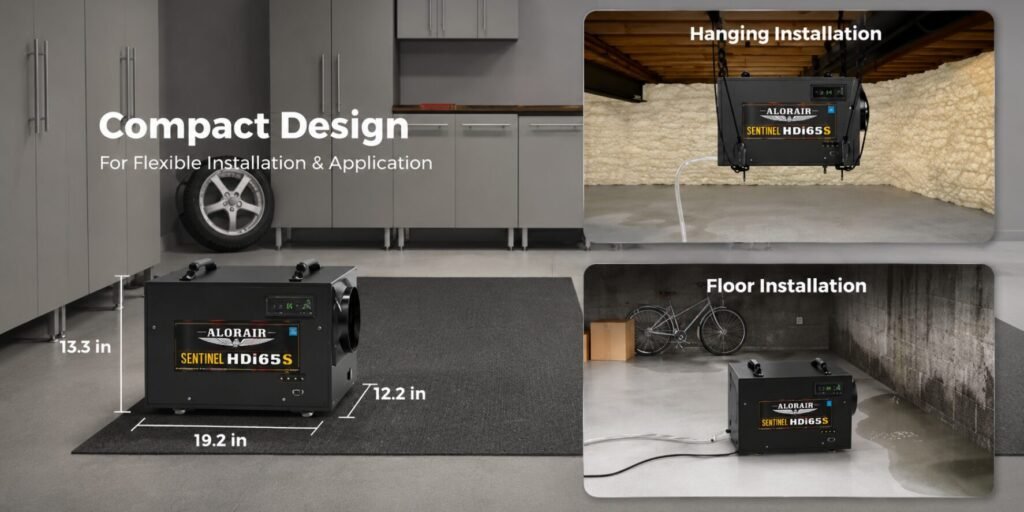

4. Compact Footprint & Hanging Kit Compatibility
Measuring just 19.2″ x 12.2″ x 13.3″ and weighing 44 lbs, this is one of the smallest crawlspace dehumidifiers in its class. It slips easily into low-clearance crawl spaces where headroom is limited. If you want to keep vibrations off your subfloor, you can pair it with AlorAir’s ratchet strap hanging kit to suspend the unit directly from floor joists.
Contractor Tip: Keeping humidity below 55% stops mold spores from germinating on floor joists. If you’re tackling workshop projects or running heavy power setups elsewhere in your home, stable climate control prevents tools, raw lumber, and electronics from corroding over time.
Use Code: 3%OFFSentinel HDi65S
Controls dampness and helps prevent mold.
Head-to-Head Comparisons
When shopping for a 120 PPD dehumidifier for 1300 sq ft crawl space applications, three main names pop up: AlorAir, Santa Fe, and AprilAire. Here is how the HDi65S stands against its main rivals.
Compact Size Comparison
| Brand & Model | Dimensions ($L \times W \times H$) | Notes |
|---|---|---|
| AlorAir HDi65S | 19.2″ × 12.2″ × 13.3″ | Fits tightest openings |
| Santa Fe Comp70 | 21.0″ × 12.0″ × 12.0″ | Standard compact size |
| AprilAire E070 | 25.0″ × 12.5″ × 14.5″ | Larger cabinet |
1. AlorAir Sentinel HDi65S vs Santa Fe Compact70
The Santa Fe Compact70 is a legendary workhorse in the encapsulation industry, but it comes at a premium price point.
- Efficiency & Power: The Santa Fe pulls 70 pints per day at AHAM conditions compared to the AlorAir’s 55 pints per day. However, the AlorAir pulls just 4.1 Amps at 115V, yielding a strong 2.4 L/kWh COP rating.
- Built-in Pump: The HDi65S comes with an internal condensate pump right out of the box. With the Santa Fe Compact70, an internal pump isn’t standard on base models—you often have to set up gravity lines or purchase an external pump setup.
- Footprint: The HDi65S is slightly shorter in length ($19.2″$ vs $21″$), making it easier to maneuver through awkward crawl hatches.
2. AprilAire E070 vs AlorAir Sentinel HDi65S Review
AprilAire makes solid whole-home humidity control units, but their design philosophy differs from AlorAir’s crawl space focus.
- Size & Weight: The AprilAire E070 is significantly longer ($25″$) and heavier ($56$ lbs) than the 44 lb HDi65S. In a tight 18-inch crawl space, those extra 6 inches of cabinet length make installation considerably harder.
- Ducting & Controls: Both units support external duct collars and optional remote sensors. However, AlorAir’s bypass air sensor setup minimizes short-cycling when placed in tight, unvented corners.
- Price-to-Performance: The HDi65S offers full commercial feature sets—including R32 refrigerant, internal pump, and a 6-year warranty—at a lower entry price.
Who Needs This Unit? (And Who Should Pass)
Who Needs This:
- Homeowners with Crawl Spaces Up to 1,300 Sq. Ft.: If you have a small-to-medium encapsulated or semi-sealed crawl space, this unit hits the sweet spot for capacity and power draw.
- Tight Access Hatches: If your crawl space entrance is a tight wall hatch or a squeeze underneath floor joists, the 44 lb, compact frame is easy to pull through.
- Homes Without Floor Drains: The built-in pump gives you complete flexibility to push water up and out through wall framing.
- Unheated Basements or Cold Climates: The auto-defrost system keeps it pulling moisture down to 33.8°F without icing over.
Who Should Pass:
- Massive Footprints (Over 1,500+ Sq. Ft.): If you have a massive $2,500+$ sq. ft. basement or sprawling crawl space, step up to the AlorAir Sentinel HD90 or HD190 series.
- Severe Standing Water Issues: A space dehumidifier is designed to pull moisture out of the air, not pump out active flooding. Fix bulk water intrusion, install a sump pump, and lay down a proper 12-mil vapor barrier before installing any alorair dehumidifier.
Pros and Cons
Pros
- High Efficiency (2.4 L/kWh): Energy Star certified operation keeps electric bills low even when running continuously.
- Built-In Condensate Pump: Features a 19.6 ft head lift so you don’t need external gravity traps or aftermarket pump boxes.
- Rugged Sheet Metal Casing: Built to handle bumps, drops, and damp conditions far better than plastic residential units.
- Cold Weather Performance: Auto-defrost keeps coils clear down to 33.8°F.
- Compact & Light: Easy one-person installation at only 44 lbs.
- 6-Year Limited Warranty: 2 years of full coverage gives you solid peace of mind.
Cons

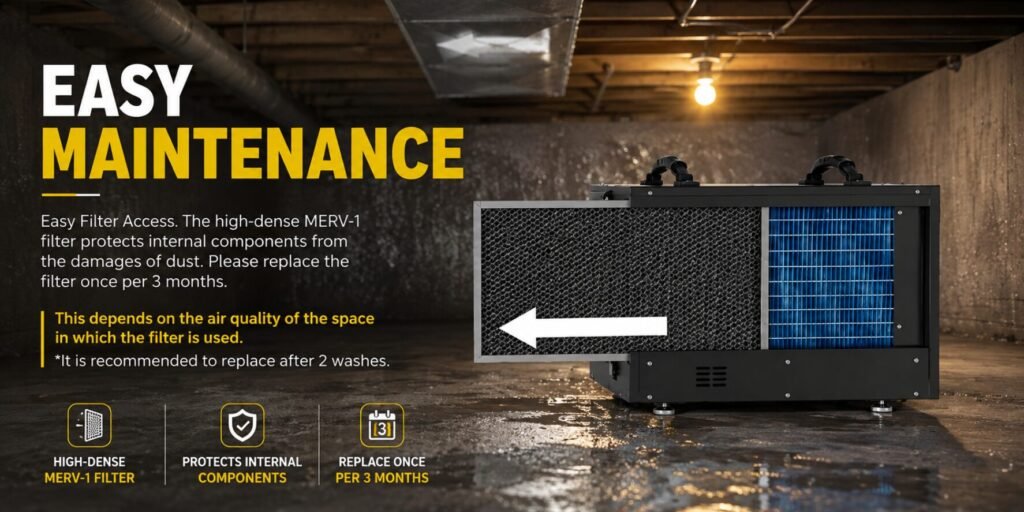

- Basic Filter Out of the Box: Comes with a standard MERV-1 filter. If you want heavy dust or spore filtration, you’ll want to upgrade filters.

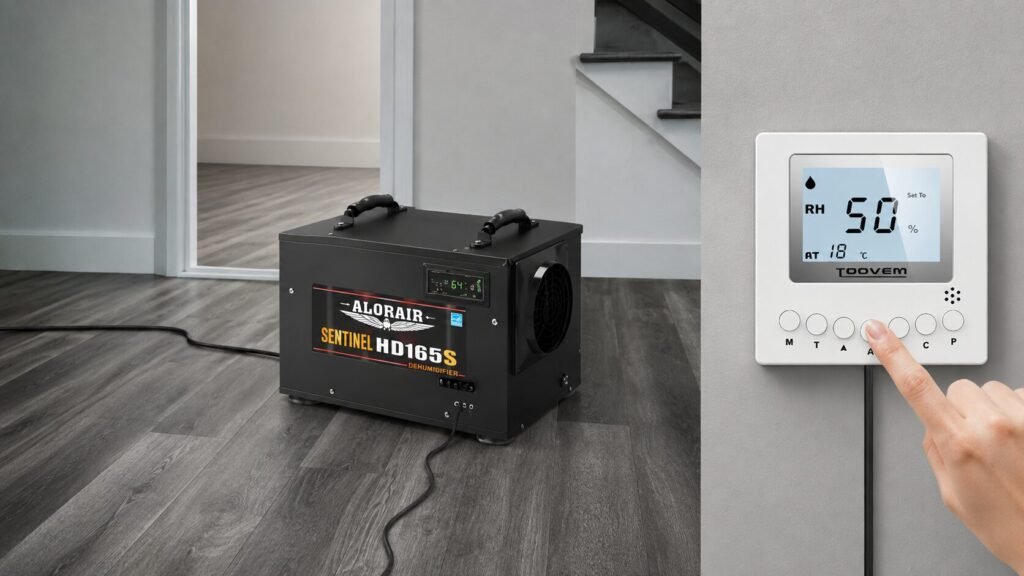

- Optional Remote Controller: While it supports HVAC remote sensing and wall-mounted control switches, the remote terminal must be purchased separately if you want to monitor levels from inside your living room.
Use Code: 3%OFFSentinel HDi65S
Controls dampness and helps prevent mold.
Real-World Installation & Maintenance Setup
Installing the AlorAir Sentinel HDi65S is a straightforward Saturday DIY job if your space is prepared.
+————————-+
| CRAWL SPACE JOISTS |
+————————-+
|
| (Hanging Straps)
v
+————————-+
| AlorAir HDi65S |
| • Airflow: 130 CFM |
| • Power: 4.1A |
+————————-+
| |
| v
| [Dry Air Output]
v
[1/4″ Condensate Hose]
|
v
(Pumps Up to 19.6 ft Out)
- Location & Leveling: Set the dehumidifier near the middle of the crawl space on a level pad, or suspend it from joists using ratchet straps. Leveling ensures the internal condensate tray drains cleanly into the pump reservoir.
- Plumbing the Drain Line: Connect the included discharge line to the pump outlet. Run the line with a slight upward incline toward your discharge point. Avoid sharp kinks in the tubing.
- Power: Plug the unit directly into a dedicated 115V GFCI outlet. Avoid thin extension cords that create voltage drops.
Home Power & Energy Note: If you live in an area prone to harsh winter storms or grid failures, keeping essential equipment running matters. Knowing how your home’s total electrical loads break down—whether you’re running heavy workshop gear or backing up critical appliances—is key. Check out our guide onGrid Down for Days? Why This 4000W Beast Is the Ultimate Blackout Survival Secretto learn how to keep off-grid power flowing during emergencies.

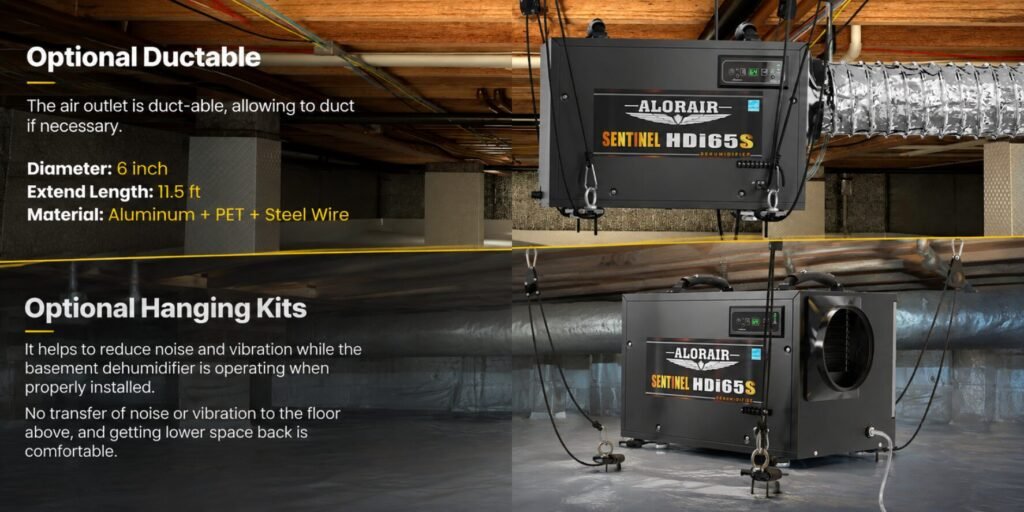

- Ducting Options (Optional): If your crawl space has divided masonry walls or isolated pockets, you can attach duct collars to the HDi65S supply outlet to push dry air into separate bays.
When managing your entire home’s climate efficiency—from subfloor humidity up to living space cooling—balancing energy costs is crucial. If you’re looking at overall HVAC upgrades, take a look at our review on the Cozeware 24K Mini Split: Can AI Slash Your Power Bill? to see how modern heat pumps handle sensible vs. latent heat loads.
- Custom Mounting & Brackets: For custom installations, some homeowners prefer 3D printing custom duct adapters or mounting brackets for clean wall pass-throughs. If you like making custom shop rigs, check out the Anycubic Kobra S1 Combo Review – High-Performance Multi-Color CoreXY 3D Printing Guide or explore custom labeling setups with the ACMER P3 48W Laser Engraver Review – Is This the Best Side Hustle Machine in 2026?.
Use Code: 3%OFFSentinel HDi65S
Controls dampness and helps prevent mold.
Frequently Asked Questions: Real Answers for Homeowners & DIYers
When you’re crawling under your house to tackle a moisture problem, you want straight answers, not sales fluff. Here are the top technical, health, and buying questions homeowners ask before pulling the trigger on the AlorAir Sentinel HDi65S.
Technical & Installation FAQs
How high can the AlorAir HDi65S pump lift water?
It features a built-in condensate pump with a 19.6-foot vertical lift. That gives you plenty of headroom to run the included drain hose straight up through a rim joist, out to daylight, or into a main PVC drain pipe without needing an external pump box.
Why is my dehumidifier freezing up?
In cold crawl spaces, standard residential dehumidifiers turn into solid blocks of ice when temperatures dip below 60°F. The HDi65S uses an advanced hot-gas auto-defrost system that senses coil temperatures down to 33.8°F. When frost starts building up, the compressor temporarily pauses while the 130 CFM fan keeps blowing to thaw the coils fast and get back to drying.
Can I duct the AlorAir Sentinel HDi65S?
Yes! The unit comes equipped with optional duct mounting flanges. You can attach 6-inch flex ducting to the discharge air outlet to direct dry air into separate bays, unvented corners, or adjacent rooms in a partitioned basement.
What is the actual PPD (Pints Per Day) capacity?
Dehumidifier capacity ratings depend entirely on humidity and room temperature:
- Saturation Rating (90°F, 90% RH): 120 PPD (This is the maximum moisture the unit can pull out during heavy water restoration jobs or extreme heat spells).
- AHAM Standard Rating (80°F, 60% RH): 55 PPD (This is the industry baseline standard for normal living and crawl space conditions).
Health & Moisture Control FAQs
How fast does mold grow in a crawl space?
Mold spores don’t waste time. If relative humidity stays above 60% and temperatures are mild, mold spores can start germinating and spreading on floor joists, wooden beams, and fiberglass insulation in as little as 24 to 48 hours.
What is the ideal humidity for a crawl space?
You should aim to keep your crawl space between 45% and 50% relative humidity. Keeping it under 55% completely stops mold spores from germinating and prevents structural rot, while dropping below 40% wastes electricity without providing any real extra benefit.
Are crawl space fans better than a dehumidifier?
No. Foundation vent fans simply pull outdoor air through your under-house space. During damp summer months, blowing humid 80% outside air under your subfloor actually makes moisture problems worse. A dedicated crawlspace dehumidifier continuously strips water out of the air and pumps it away.
The Buyer’s Dilemma: Brand & Model FAQs
Is AlorAir as good as Santa Fe?
It comes down to your budget and priorities:
- AlorAir Sentinel HDi65S: Offers incredible “pints-per-dollar” value. It includes a built-in condensate pump, an ultra-compact footprint ($19.2″$ long), and an Energy Star COP rating of 2.4 L/kWh right out of the box.
- Santa Fe Compact70: A stellar American-built unit with superior MERV-13 air filtration options, but it costs noticeably more and requires buying an external pump setup if gravity drainage isn’t an option.
Is the AlorAir HDi65S built in the USA?
AlorAir is an American-founded company based out of Chino, California. However, their manufacturing takes place overseas. This allows them to include heavy-duty commercial specs—like built-in condensate pumps and rare earth alloy evaporators—at a much lower price point than purely domestic competitors.
Does AlorAir have a Wi-Fi app?
Yes, but make sure you check the specific model listing. AlorAir offers a dedicated Wi-Fi enabled model variant that pairs with an app on your phone. It allows you to monitor crawl space humidity, change setpoints, and review diagnostic alerts from the comfort of your couch.
Use Code: 3%OFFSentinel HDi65S
Controls dampness and helps prevent mold.
AlorAir Shipping, Returns & Warranty Guide: What You Need to Know Before Buying
Buying a heavy commercial dehumidifier isn’t like ordering a pair of shoes. When you’re dropping money on subfloor moisture protection, you want to know exactly how shipping works, what happens if a box arrives damaged, and how solid the warranty coverage is.
Here is a clear breakdown of AlorAir’s official shipping policies, 30-day return rules, and their upgraded 6-year warranty terms.
AlorAir Shipping & Delivery Breakdown
1. Free Shipping Options
AlorAir offers free standard shipping on all orders across the continental United States. Free shipping applies automatically at checkout without needing extra coupon codes.
Important Location Note: Delivery is available across lower-48 states. However, standard shipping does not cover Hawaii, Alaska, or international addresses. For orders outside the continental US, buyers must contact customer service directly via email prior to ordering.
2. Processing Times & Delivery Expectations
- Order Processing: Orders are typically processed within 1 business day (excluding weekends and major holidays).
- Delivery Window: Standard transit time takes between 5 to 14 business days, depending on your location.
- Tracking: A tracking number is emailed within 48 hours of dispatch. If an order hasn’t arrived within 14 days of confirmation, contact support@alorair.com to start a carrier investigation.
3. Handling Damaged Freight
Heavy metal dehumidifiers can take a beating during transit.
- Inspect at Delivery: If a parcel arrives visibly crushed or damaged, you should reject the package directly with the courier if possible.
- Delivered While Away: If the driver leaves a damaged box at your door, take photo evidence immediately and contact customer support to process a replacement.
AlorAir 30-Day Return & Refund Policy
AlorAir provides a 30-day return window from the date of delivery.
Delivery Date ➔ 30-Day Window ➔ Unused + Original Packaging ➔ Full Refund
Key Return Rules
- Condition: To qualify for a return, the unit must be unused, in its original packaging, and accompanied by the original order number or proof of purchase.
- Change-of-Mind Returns: If you return a unit simply because you changed your mind, you are responsible for paying all return shipping and handling costs using a carrier of your choice.
- Defects or Shipping Damage: If a product is delivered damaged or incorrect, AlorAir covers return shipping costs free of charge.
- No Restocking Fees: Consumers are not charged a restocking fee on returned items.
- Exclusions: Custom-made items or products with personalized labels cannot be returned.
Refund Timelines
Once your return arrives at their facility, technicians inspect the unit and email you an official inspection report. If approved, your original payment method is credited automatically within 5 business days.
AlorAir 6-Year Upgraded Warranty Coverage
AlorAir backs their dehumidifiers with an upgraded 6-Year Limited Warranty (upgraded from their older 5-year structure). This coverage applies to all orders placed on or after May 14, 2026 (as well as purchases made between April 14 and May 13, 2026).
AlorAir 6-Year Limited Warranty
| Warranty Period | Coverage Details |
|---|---|
| Years 1 – 2 | Full Coverage: Parts, labor, and complete unit replacement |
| Years 3 – 6 | Refrigeration Parts Only: Compressor, condenser, and evaporator coils |
Warranty Terms Breakdown
| Warranty Period | What Is Covered? | What Is Excluded? |
| Years 1 & 2 | Full Coverage: Complete unit replacement, all parts, and repair labor. | Negligence, misuse, or improper installations. |
| Years 3 through 6 | Refrigeration System Parts: Compressor, condenser coil, and evaporator coil. | Labor charges, freight/transportation costs, and service fees. |
Warranty Registration Note: Warranty coverage is strictly non-transferable and valid for the original purchaser only. Be sure to fill out the warranty registration form on their official site shortly after your purchase.
Official AlorAir Contact Information
If you need to submit a warranty claim, request a shipping update, or verify a return address, you can reach out directly using the details below:
- Phone Support: (888) 990-7469 (Monday–Friday: 7:00 AM – 4:00 PM PST)
- Email Support: support@alorair.com or support@aloraircrawlspace.com
- Corporate Address: 14752 Yorba Ct, Chino, CA 91710 USA
Final Verdict
The AlorAir Sentinel HDi65S is easily one of the most practical crawl space dehumidifiers on the market today. It hits the exact feature set real homeowners and contractors actually need: a built-in pump that lifts water high, cold-weather defrost capabilities, a heavy-duty metal chassis, and a compact size that fits almost anywhere.
If you’re tired of damp odors creeping up into your floorboards, saggy insulation, or constant worries about wood rot, installing an HDi65S is one of the smartest investments you can make to protect your home’s structural foundation.
